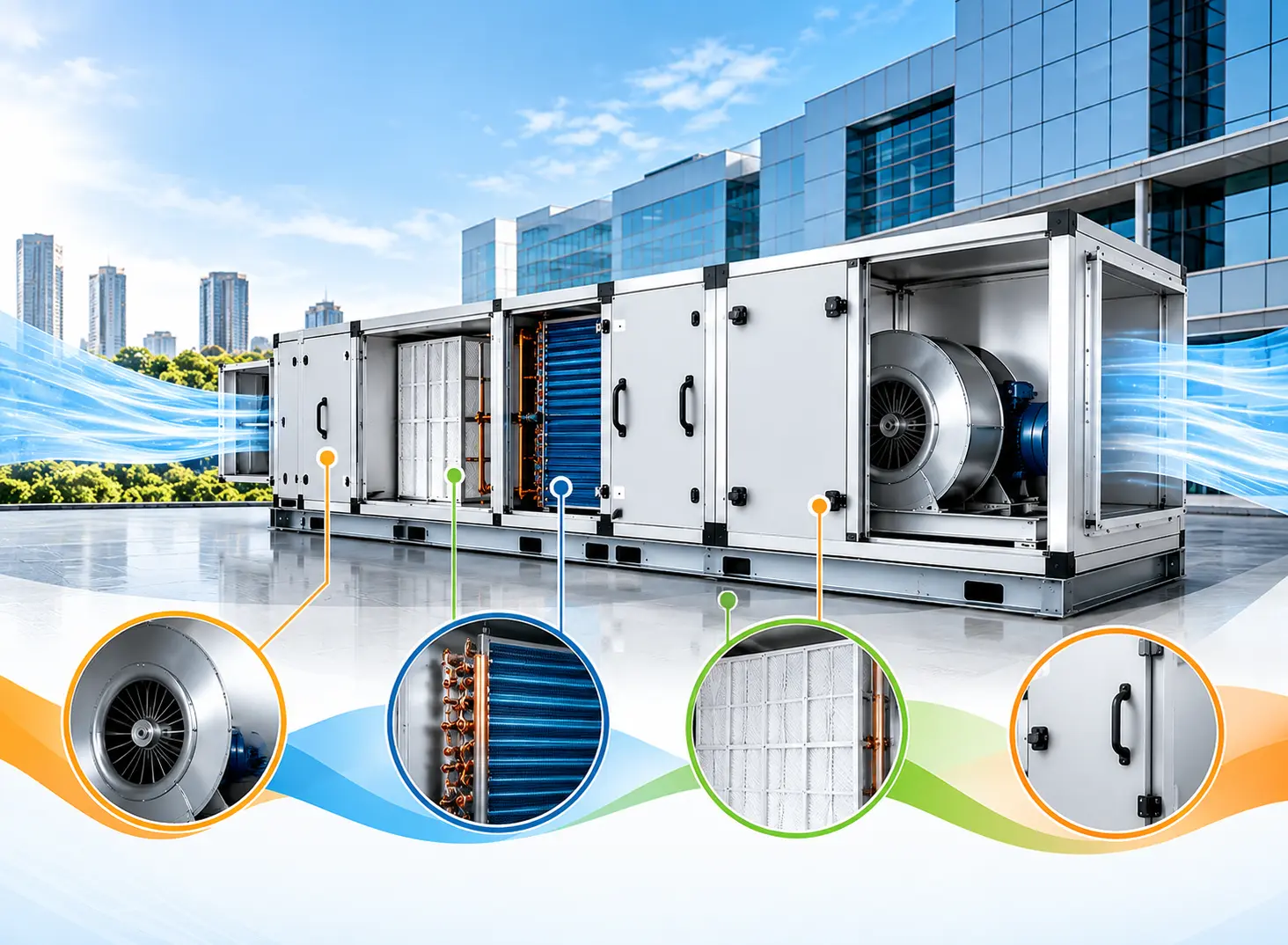

A horizontal air handling unit (AHU) is a floor mounted air treatment unit that conditions and moves air through a building. Its sections sit in a line: fan, coil, filters and any extra stages, all inside one insulated casing. Air comes in at one end, passes through each section in turn, and leaves cooled, heated, filtered or humidity controlled, ready for the ducts.
Because the sections are positioned end to end, horizontal AHUs are an ideal choice for plant rooms that have more available floor length than ceiling height. The side-access panel design also makes filters, coils and fans easy to access for regular inspection and maintenance. A reliable Horizontal AHU Manufacturer in India can provide configurations designed to meet the specific airflow, space and application requirements of different commercial and industrial buildings.
Managing indoor air quality in commercial spaces demands more than standard solutions. It requires a precision-engineered commercial Air Handling Unit (AHU) designed to meet your exact requirements while ensuring consistent performance across India’s diverse climate conditions.
Our horizontal air handling units are built with a modular design, enabling complete customization in configuration, size, filtration systems, and access panels. Whether you need efficient cooling for a 5,000 sq. ft. office or a large 1,00,000 sq. ft. commercial building, our AHU systems are scalable to deliver optimal airflow, energy efficiency, and performance.
Resists corrosion in humid and coastal conditions, where painted steel frames start to fail first.
Limit heat gain into the cold air stream and reduce condensation on the casing, which keeps the unit and the plant room dry.
A denser core holds its insulating value longer and keeps the panel rigid.
moves condensate to the drain without leaving standing water, which is where odour and microbial growth begin.
Sealed against dust and water jets, suited to plant rooms and production floors.
Our horizontal AHUs use a modular design, so each unit is put together around your project instead of being selected from a fixed catalogue. Greenoz Cooling System offers customizable configurations to meet specific space, airflow and performance requirements. You can specify:
Whether you are cooling a 5,000 sq. ft. office or a 1,00,000 sq. ft. commercial building, the same platform can scale to deliver the airflow, energy efficiency and performance the space requires across India’s varied climate zones.
| Horizontal AHU | Vertical AHU | |
|---|---|---|
| Layout | Sections in a line, floor mounted | Sections stacked, upright |
| Best when | Plant room has floor length but limited height | Floor area is tight and headroom is available |
| Maintenance | Side access to each section | Access from the front |
| Typical use | Offices, hospitals, malls, production halls | Compact plant rooms, retrofits, smaller footprints |
Not sure which fits your plant room? Send us the dimensions and we will tell you. See also our Vertical AHU and Ceiling Suspended AHU ranges.
Steady temperature, filtered fresh air and quiet operation across open floors and meeting rooms.
High airflow for large, crowded spaces, with units sized to handle changing occupancy through the day.
Quiet, reliable air handling for lobbies, banquet halls, restaurants and corridors.
Filtered, controlled air for wards, waiting areas and support spaces.
Even air distribution with low noise, so the space stays comfortable without distracting from the event.
Honda Motors, Hero MotoCorp, and Maruti Suzuki use Greenoz AHUs in their manufacturing facilities, where temperature and humidity control matter to the production process.
From Britannia’s food processing units to UltraTech’s cement facilities, our horizontal AHUs run in demanding industrial settings. The modular design lets teams service and upgrade sections without shutting down the whole unit.
Our floor mounted horizontal AHUs cover 2,000 to 60,000 CFM. Units are modular, so a single platform handles everything from a small office floor to a large production hall.
A horizontal AHU lays its sections out in a line and suits plant rooms with floor length but limited height. A vertical AHU stacks the sections upright to save floor area. The airflow and treatment are the same; the choice comes down to the shape of your plant room.
Capacity follows your cooling load, the size of the space and the fresh air your occupancy requires. As a rough starting point for comfort cooling, many designers work from about 400 CFM per ton of refrigeration. Send us your load calculation or floor plan and we will confirm the right size.
A double-skin panel has an inner and outer sheet with insulation between them. It limits heat gain into the cold air, reduces condensation on the outside of the unit, and keeps the casing rigid. Our panels come in 25 mm to 50 mm thicknesses, with an optional thermal break profile for humid or high-heat plant rooms.
CFC-free polyurethane foam in densities from 30 to 60 kg/m³. Higher density gives a firmer panel and holds its insulating value longer.
Yes. Size, section configuration, filtration and access panel positions are all set to your requirements. Send us your airflow, static pressure, space dimensions and application, and we will come back with a configuration.
Offices, hospitals, hotels, shopping malls, auditoriums and manufacturing plants. Our customers include Honda, Hero MotoCorp, Maruti Suzuki, Britannia and UltraTech Cement.
Yes. Our engineers and technicians provide prompt service and after-sales support.
Share your CFM, static pressure, plant room dimensions and application. Our engineers will respond with a recommended configuration and a quote.
